Is it possible to prepare for everything?
As a testing specialist, always.

XiL & Testing

Whether in the new construction of vehicles or integration of new components and systems: by means of reliable tests in all phases of the project, Schaeffler Engineering achieves the greatest possible functional safety and reduces costs at the same time.

We leave nothing up to chance

The requirements of a modern vehicle are growing continuously. Whether safety, efficiency, environmental compatibility, or comfort: innovative control units with intelligent software, in the most varied locations in the vehicle, provide optimal functioning and perfect interplay between all components.

As testing specialists, we ensure, in spite of rising complexity, that

  • the development times remain straightforward.
  • the testing costs are lower.
  • optimal system safety is guaranteed.

And all of that even in the earliest stage of development.

Testing everything from model, software, processor to hardware

If the new project has successfully passed through all XiL phases, the new system can be implemented in the hardware and integrated into the vehicle.


As the model of the new system is being developed in MATLAB® / Simulink® with the aid of a computer, the first tests are already taking place in a loop with the virtual environment model. This way the feasibility can be tested parallel to the development.


If the model has been checked, the corresponding software is developed. This is converted into code that can be read by the target hardware and is then likewise tested in a virtual environment model.


The error-free code can now be applied to a newly developed processor or an FPGA. Before it is transferred on the control unit, an additional test takes place in a loop in an environment model: The Processor-in-the-Loop.


In the last step, we integrate the new software into the control unit and test the mechatronic system on a HiL simulator. Just like all previous tests, these tests generally run automatically – without manual error sources.

Think – and work – holistically

In addition to analytical support in new development, we of course also test existing control units on our test benches. Here too, we take on the entire strategy, concept, and process development and use modern testing tools and software to guarantee fast and, above all, reliable results.

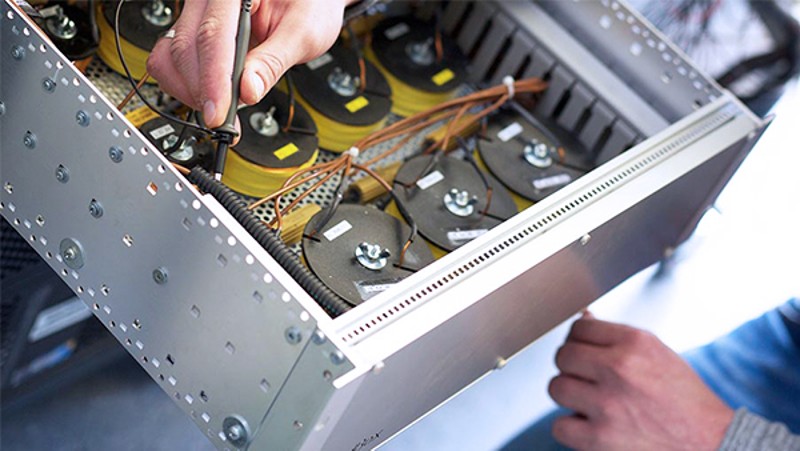

The Hardware Tools

Hardware concept:
  • Modular concept based on 19-inch racks, mobile on-wheel rack or securely installed wall-mounted rack, depending on size.
Typical modules:
  • Alternating current/direct current supply module
  • Real-time computer with all I / O cards
  • Breakout module with corresponding connections for all ECU pins and ECU cable har-nesses
  • Interference module for error simulation via relay for standard errors
  • UBat power supply
  • 19“ industry PC
  • Mounting space for real output loads and real sensors

The Software Tools

Typical tools:
  • MATLAB® / Simulink® (MathWorks)
  • Development and test systems:
    • ControlDesk
    • LabView
    • Python / MSOffice
    • WSCAD (E-CAD)
  • Calibration systems:
    • MARC (Schaeffler Engineering)
    • CANape (Vector)
    • INCA (ETAS)
  • Diagnosis tool:
    • DTS (Softing)

System qualification

Unlimited performance

Whether an individual control unit or an entire system: we assist you in every project, in every phase of development, with our testing know-how.

For your qualification tests, we undertake the creation of the test strategy for the function and endurance tests and the environment test. The tests are carried out according to a previously generated testing plan and end with a comprehensive analysis of the test results.

If required, we create any simulators necessary for the performance of the test. In doing so, we simulate a great variety of sensors and signals, such as e.g.:

  • Generation of sensor stimulation in integrated sensors, such as e.g. rotary encoders and position encoders in transmission controllers
  • Simulation of crankshaft and camshaft encoders
  • Simulation of wastegate; knocking signals, lambda discrete-level and bandwidth sensors
  • Measurement of the ignition and injection signals

Of course in our work we take into account the applicable customer standards and norms, such as e.g. VW80000, LV124, VW 82148.

Leave nothing up to chance, and put our testing competence to the test.
